Ben-Mor Clothesline Kit & Pulley Parts

Ben-Mor Strata · Two Kits · Full Parts Line

Outdoor Clothesline Kits with Pulley System — 150 ft

Two heavy-duty Ben-Mor Strata clothesline pulley kits — Heavy Duty Gold at $74.99 and Super Heavy Duty Silver at $137.49 — both include 150 ft of rustproof cable, 6.5" metal pulley wheels, a winch tightener, spacer, and hooks. Individual clothesline pulleys, spacers, tighteners, and hooks are also available separately for replacements or custom setups.

✓ Made in Canada ✓ 150 ft Cable Included ✓ Rustproof Metal Hardware ✓ Individual Parts Available ✓ Ships from Hillsville, VA

Complete Clothesline Kits — Everything Included
Choose Your Kit

Both include 150 ft of cable and every component for a complete clothesline pulley system installation. No extra parts required.


Heavy Duty Gold Clothesline Kit

150 ft · Steel Core Cable · 6.5" Aluminum Pulleys · Made in Canada
$74.99
150 ft Gold clothesline — heavy-duty steel core with rustproof PVC coating
2 × 6.5" aluminum pulley wheels — smooth clothesline wheel operation, rustproof
1 metal mini winch tightener — tightens, locks, and holds line tension
1 plastic spacer — keeps both lines separated while drying
2 metal mounting hooks — for securing pulleys to post and house
Best for: Standard yards and average laundry loads — everyday clothing, towels, sheets. Spans up to approximately 75 ft between anchor points. Everything you need to hang a complete pulley clothesline system in one box.
Heavy Duty Gold Clothesline Kit
C1277979
$74.99
Add to Cart

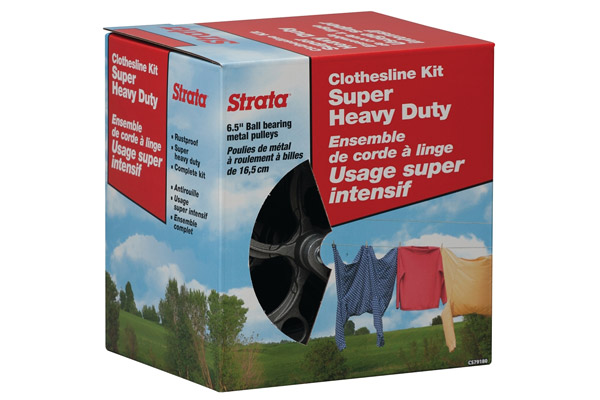

Ben-Mor Super Heavy Duty Silver Clothesline Kit

150 ft · Galvanized Steel Cable · Ball Bearing Aluminum Pulleys · Made in Canada
$137.49
150 ft Silver galvanized steel cable — PVC coated, extra-strong, maximum rust resistance
2 × 6.5" aluminum pulleys with ball bearings — smoothest clothesline wheel operation, built for daily use
1 metal mini winch — tightens and holds line tension
1 metal spacer with plastic rolling wheels — rolls smoothly along line, keeps loops separated under load
2 metal mounting hooks
Best for: Standard yards and average laundry loads — everyday clothing, towels, sheets. Spans up to approximately 75 ft between anchor points. Everything you need to hang a complete pulley clothesline system in one box.
Ben-Mor Super Heavy Duty Silver Clothesline Kit
C5693759
$137.49
Add to Cart

Spacer Line

See It Installed

The Ben-Mor pulley system in real backyards — house to post, spanning 40 to 75 feet.

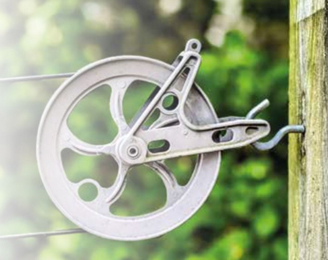

Ben-Mor clothesline pulley wheel mounted on wooden post — close up of aluminum pulley with steel cable running through it, green foliage background
Close up — aluminum pulley wheel on post

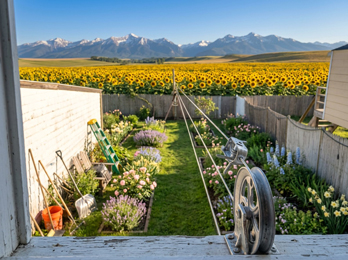

Ben-Mor clothesline pulley system installed in backyard — cable running from wooden post across flower garden with sunflower field and Blue Ridge Mountains in background
Installed and ready — garden and mountain backdrop
Spacer Line

What Clothesline Kit Is Best for You?

We carry the two most popular Ben-Mor Strata configurations. Here's how they compare across every spec that matters.

Feature Gold Heavy Duty Silver Super Heavy Duty
Duty level Heavy duty Super heavy duty
Cable length 150 ft (45.7 m) — both kits
Cable type Steel core + PVC coating Galvanized steel + PVC coating — stronger & more rust-resistant
Cable color Gold / Clear Silver / Metallic
Pulley wheel size 6.5" (16.5 cm) — both kits
Pulley wheel material Aluminum — both kits
Ball bearing pulleys Standard bushing Ball bearing — smoother & longer lasting
Spacer type Plastic spacer Metal spacer with plastic rolling wheels
Winch/tightener Metal mini winch — both kits
Hooks included 2 metal hooks — both kits
Recommended load Light to medium — everyday laundry Heavy — quilts, denim, blankets, farm loads
Max span (approx.) ~75 ft between anchor points
Origin Made in Canada
C1277979
$74.99
Add to Cart
C5693759
$137.49
Add to Cart


Still not sure? Call us Mon–Fri 9:30–5 EST: 1-800-251-8824

Spacer Line

Individual Parts & Replacement Accessories
Shop Parts Separately

Replace a worn clothesline pulley wheel, upgrade to ball bearings, add a spacer, or build a custom setup from scratch. All Ben-Mor Strata parts available individually.

Ben-Mor clothesline tightener — ball bearing quick release rustproof metal fits lines up to 1/4 inch
Ben-Mor Clothesline Tightener
Fits lines up to 1/4" · Ball Bearing · Quick Release · Rustproof Metal
Ball bearings prevent sagging. Quick-release mechanism for easy adjustment. Replace or upgrade the tightener on any clothesline system.

C5693783
$13.99
Add to Cart
Outdoor clothesline hook 140lb rated — zinc-plated steel plate mount four holes 1/4 inch mounting hole diameter
Outdoor Clothesline Hook — 140 lb Rated
140 lb Capacity · Zinc-Plated Steel · Plate Mount · 2.38"L × 1.59"W
Plate-style hook for mounting clothesline pulleys, tie-downs, and tarps. Hot-rolled zinc-plated steel. Interior and exterior use. 1/4" mounting holes.

C1715309
$3.49
Add to Cart
Ben-Mor standard clothesline pulley — 6.5 inch OD aluminum rustproof super heavy duty
Ben-Mor Standard Clothesline Pulley — 6.5" OD
6.5" OD · Aluminum · Super Heavy Duty · Rustproof
Same 6.5" aluminum clothesline pulley wheel as the Gold kit. Sold individually — order two to replace a complete set.

C5693833
$17.99
Add to Cart
Ben-Mor ball bearing clothesline pulley — 6.5 inch OD zinc metal rustproof smooth operation
Ben-Mor Ball Bearing Pulley — 6.5" OD
6.5" OD · Ball Bearing · Zinc · Rustproof
Same ball bearing clothesline pulley wheel as the Silver Super Heavy Duty kit. Noticeably smoother under heavy wet loads. Sold individually.

C5693700
$21.99
Add to Cart
Ben-Mor 8 inch ball bearing clothesline pulley — large heavy duty wheel for long spans and heavy loads
Ben-Mor Ball Bearing Pulley — 8" OD
8" OD · Ball Bearing · Metal · Heavy Duty
Largest clothesline pulley wheel we carry. Better mechanical advantage for long spans — quilts, blankets, heavy farm laundry. Ball bearing for smooth, long-lasting performance.

C5693718
$34.39
Add to Cart

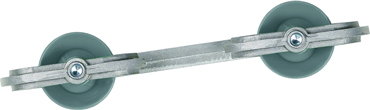

Ben-Mor clothesline spacer — 7 inch OAD metal bar with two rolling plastic wheels keeps lines separated
Ben-Mor Clothesline Spacer with Wheels — 7" OAD
7" OAD · Metal Frame · Plastic Rolling Wheels
Keeps both loops separated, prevents wind tangling. Plastic wheels roll smoothly along the line. Same type as Silver kit. Use multiple spacers on longer spans.

C5693767
$13.99
Add to Cart
Ben-Mor heavy metal clothesline spacer — 10 inch height 2 inch wide all-metal construction heavy duty
Ben-Mor Heavy Metal Clothesline Spacer — 10" H
10" H × 2" W · All-Metal · Heavy Duty
Larger, more robust spacer for long spans and heavy loads. Pairs with 8" pulleys and Silver kit for full-length farm or homestead runs.

C5693817
$22.89
Add to Cart
Ben-Mor C78005V standard mini winch tightener — metal construction for tensioning outdoor clotheslines
Ben-Mor Standard Mini Winch Tightener
Metal Construction · Standard Size · Rustproof
The same mini winch tightener included in both the Gold and Silver kits, sold individually. Replace a worn tightener or keep a spare on hand. Tightens by turning to create and hold line tension.

C5693825
$11.49
Add to Cart
Spacer Line

Why a Pulley Clothesline System?

Saves energy, saves money, and leaves your laundry smelling like the outdoors — the way it's always been done.

Cut Energy Bills
Line drying can reduce home energy use by up to 30% versus running a dryer
🌿
Fresh-Air Results
Sun and wind leave clothes smelling clean naturally — no dryer sheet required
👕
Clothes Last Longer
No heat damage, no color fade — fabrics last years longer without a dryer
🔄
No Walking Required
Stand in one spot and pull the line toward you as you hang each piece
🏡
Built for Homesteads
150 ft cable handles house-to-barn, house-to-shed, and post-to-post spans
🔧
Easy to Install
Two hooks, two pulleys, one winch — most installs take under an hour
Spacer Line

How to Install Your Clothesline

Six steps from hardware to hanging laundry — includes the manufacturer's step-by-step visual guide.

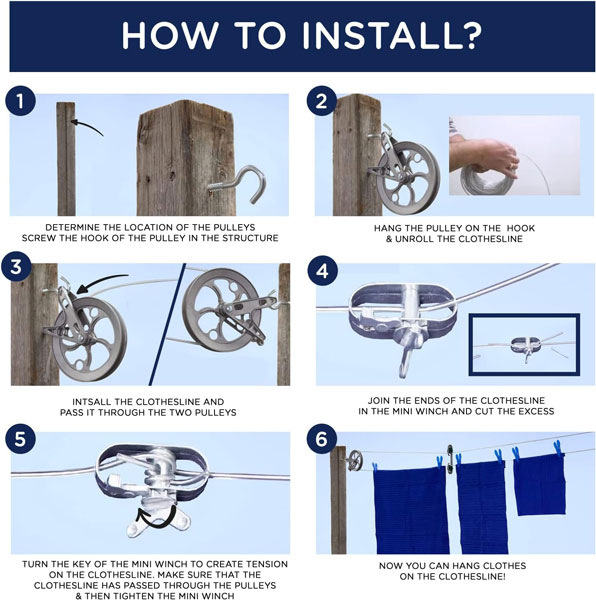

Ben-Mor clothesline installation guide — 6-step infographic: determine pulley location, hang pulley on hook, thread clothesline through pulleys, join ends in mini winch, tighten winch, hang clothes on finished clothesline
1
Check your municipality first. Some areas restrict clothesline installation. Choose an open location with maximum sun exposure and airflow. Avoid tree branches and electric wires.
2
Pick your two anchor points. One pulley mounts on or near the house; the other on a post, pole, or shed. Measure the distance between them — your cable must be at least twice that distance to form a complete loop. Both kits include 150 ft.
3
Install the house-side pulley. If you have vinyl or aluminum siding, install a 2×8 board between the frame and siding first to create a solid anchor. Screw the hook into the frame, then hang the pulley on the hook.
4
Install the far-side pulley. Wooden post: screw the hook directly in. Metal post: use a U-bolt and S-hook, then hang the pulley. The post must be solid — the line puts continuous pressure on it, especially with wet clothes.
5
Thread the cable and tighten. Run cable through both pulleys to form a loop. Join both ends in the mini winch. Turn the winch key to create tension — make sure cable is seated in both pulley grooves. Cut any excess cable.
6
Use the spacer as you hang clothes. Clip the spacer onto both lines while hanging laundry — it keeps the loops separated and prevents wind from wrapping or tangling the lines.
▶ Watch the Full Installation Video on YouTube
Pro tip: For maximum convenience, add an elevator pole at the house end that raises and lowers the clothesline — especially helpful on long spans or when hanging heavy quilts and blankets without bending.
Spacer Line

Common Questions

Things people ask before ordering a clothesline pulley kit.

For most standard backyards with everyday laundry loads under 60 ft, the Gold Heavy Duty does the job well. Upgrade to Silver Super Heavy Duty if your span is 60–75 ft, you're hanging heavy items daily (quilts, denim, blankets, farm laundry), or you want ball bearing clothesline pulley wheels for smoother, longer-lasting operation. Still not sure — call us at 1-800-251-8824 and we'll help you choose.
Both kits include 150 ft of cable. Because the cable forms a continuous loop through two pulleys, your maximum span between anchor points is approximately 75 ft. Measure your distance first and confirm that 150 ft covers it (span × 2 plus a few extra feet for the winch and hooks).
Yes — we carry all Ben-Mor Strata parts individually. That includes the 3.5", 6.5", and 8" clothesline pulley wheels (standard and ball bearing), spacers in two sizes, the ball-bearing tightener/tensioner, and 140 lb mounting hooks. See the accessories section above.
Standard pulleys use a plain bushing — they spin freely and work well for light-to-medium loads. Ball bearing pulleys have sealed bearings inside that dramatically reduce friction. Under a heavy load of wet laundry, ball bearing clothesline pulley wheels spin noticeably more smoothly and last significantly longer with daily use. The Silver kit and our 6.5" and 8" individual pulleys use ball bearings.
The kit provides every clothesline component. You'll need a drill and appropriate screws or lag bolts for a wooden post or house frame. For a metal post, add a U-bolt of the appropriate size. Most installs are straightforward and take under an hour. The YouTube installation video walks through every step.
Yes — both kits are designed for permanent outdoor installation. The PVC-coated cables resist weather and moisture. For harsh winters with heavy snow or ice buildup, the Silver Super Heavy Duty kit's galvanized cable handles the extra stress better. Some customers remove the cable for winter storage and rehang in spring — the pulleys can stay mounted permanently.
No. A pulley clothesline system keeps cable permanently strung between two fixed anchor points. You stand in one spot and pull the line toward you as you hang clothes. Retractable clotheslines coil back into a wall housing when not in use. Pulley systems handle heavier loads, span longer distances, and are better suited for full household or homestead laundry.
Ben-Mor is a Canadian manufacturer. All Strata clothesline kits, pulley wheels, spacers, and accessories are made in Canada. Ben-Mor has been manufacturing quality rope, cable, and clothesline hardware for decades.
Spacer Line

Questions? We'll Help You Pick the Right Kit.

Two kits and all individual parts in stock, shipping from Hillsville, VA. Real people answer the phone — we've been doing this for 26 years.

1-800-251-8824
